Familiar with your MetaTrader

[mtvortex]

MORE USEFUL TIP FOR MT4 USER..CONTINUE..

Crosshair mode, and ruler tool
Click the mousewheel to switch cursor to the "crosshair" mode.
This can also be achieved by pressing Ctrl-F, or selecting the crosshair icon from the toolbar. The crosshairs also display vertical (price) and horizontal (date/time) co-ordinates at the right and bottom of the chart.
Simply left-click to exit crosshair mode.

Now, here is something extremely useful that I haven’t found in the on-line help:
While in crosshair mode, hold down the left mouse button and drag the mouse to obtain a ruler-type tool that measures vertical (number of pips) and horizontal (number of bars) from the center of the crosshairs. The tool displays counters in the form "A/B/C" where A is the number of bars right or left of the crosshair, B is the number of pips from crosshair to cursor, and C is the price at the cursor.

"B" extremely useful for measuring the number of pips between any two points, thus:
1) move the mouse to the point you want to measure from (the "anchor" point);
2) click the mousewheel to enter crosshair mode;
3) then hold down the left button and move the mouse to any number of destination points, to see the number of pips between the anchor point and the current mouse destination.
This saves having to calculate this distance manually, as the difference between two prices. Pretty cool!
You can also use this facility to count price bars (reading "A") between any two dates/times.


Reference and anchor points
At the lower left of the chart there is a dark colored arrow. Dragging it with the mouse sets the reference (anchor) point for the chart. Now when you zoom in or out, or even change the timeframe, this point remains anchored at its existing location.

At the upper right of the chart there is likewise a dark colored arrow. Drag it left or right with the mouse to set the location for the last (most current) bar on the chart (i.e. set the amount of empty "whitespace" at the right of the chart).



[mtvortex]

MORE USEFUL TIP FOR MT4 USER..CONTINUE..

List of hotkeys

There are many other useful hotkeys. Here is a comprehensive list:

Left arrow — scroll chart to the left;
Right arrow — scroll chart to the right;
Up arrow — quickly scroll chart to the left or (if the scale is defined), scroll chart upwards;
Down arrow — quickly scroll chart to the right or (if the scale is defined), scroll chart downwards;

Numpad 5 — restores chart vertical scale to its original default. If the scale was defined, this returns the chart back to its visible range;

Page Up — scroll a whole screen to the left;
Page Down — scroll a whole screen to the left;
Home — move the chart to the start point (first bar);
End — move the chart to the end point (last, i.e. most current) bar;

"–" — zoom out (there are 6 levels of zoom available);
"+" — zoom in;

Delete — delete all selected objects;
Backspace — delete most recently added objects, on a last-added-first-removed basis;

Enter — open/close the fast navigation window;
Esc — close any dialog window;

F1 — open the on line help "Userguide";
F2 — open the "History Center" window;
F3 — open the "Global Variables" window;
F4 — open MetaEditor;
F5 — switch to the next profile;
F6 — call the "Tester" dialog window for testing the expert attached to the chart window;
F7 — call the properties dialog window of the expert attached to their chart window, in order to change its settings;
F8 — call the chart setup dialog window, allowing basic chart parameters, colors, etc to be changed;
F9 — call the "New Order" window, allowing the entry of market, limit, stop orders;
F10 — open the "Popup prices" window;
F11 — enable/disable full screen mode;
F12 — scroll the chart one bar to the left;

Shift+F12 — scroll the chart one bar to the right;
Shift+F5 — switch to the previous profile;

Alt+1 — display the chart as OHLC bars;
Alt+2 — display the chart as OHLC candlesticks;
Alt+3 — display the chart as a line (closing prices only);

Alt+A — copy all test/optimization results onto the clipboard;
Alt+W — call the chart management window;
Alt+F4 — exit the program;

Ctrl+A — arrange all indicator window heights by default;
Ctrl+B — call the "Objects List" dialog window;
Ctrl+C or Ctrl+Insert — copy to the clipboard;
Ctrl+D — open/close the "Data Window";
Ctrl+E — enable/disable the attached expert advisor;
Ctrl+F — switch to "Crosshair" mode;
Ctrl+G — show/hide the vertical/horizontal grid;
Ctrl+H — show/hide the OHLC line;
Ctrl+I — call the "Indicators List" dialog window;
Ctrl+L — show/hide volume data on the main chart;
Ctrl+M — open/close the "Market Watch" window;
Ctrl+N — open/close the "Navigator" window;
Ctrl+O — open the "Setup" window;
Ctrl+P — print the chart;
Ctrl+R — open/close the "Tester" window;
Ctrl+S — save the chart prices (OHLCV) in a file having extensions: "CSV", "PRN" or "HTM";
Ctrl+T — open/close the "Terminal" window;
Ctrl+W or Ctrl+F4 — close the chart window that's currently in focus;
Ctrl+Y— show/hide date (period) separators;
Ctrl+Z or Alt+Backspace — undo object deletions in the reverse order they occurred;

Ctrl+F6 — switch to the next chart window;
Ctrl+F9 — open the "Terminal — Trade" window and switch the focus into it, allowing trading operations to be entered via the keyboard.


Attaching indicators to indicators outside of the main price chart
You can attach moving averages and other indicators to indicators on other than the main chart. For example, if you want to use a moving average to smooth RSI, do the following:
1) Create a lower window with RSI in the normal manner.
2) Open the navigator window (press Ctrl-N).
3) Click on the "Indicators" heading in the Navigator window, if necessary, to expand it.
4) Move the mouse to the "Moving Average" item, then (holding down the left button), drag it (a rectangle appears under the arrow cursor) into the RSI window.
5) In the ensuing dialog box, got to the "Apply to" drop down, and set this to "First indicator's data". This will cause the MA to be attached to the first indicator in this window, i.e. the RSI.
6) Adjust other parameters as desired, and press Enter.

NOTE:
-- To create an indicator in a separate window, right-click on its name in the Navigator, and select "Attach to a chart".
-- To create an indicator in the same window as another, drag it's name into the relevant window.


Adding custom-defined indicators to MT4
One of the most powerful MT4 features is that it has a comprehensive but friendly programming language that allows custom-defined indicators, scripts and expert advisors to be written. Here's how to import an already written indicator into MT4's charting facility:

1) Go to a web resource that has the source code for the indicator. A good one is http://www.xeatrade.com/trading/11.html
Note the "# A B C D E F G H I J K L M N O P Q R S T U V W X Y Z" index.
So if you want to add (for example) the PPCI indicator to your charts, click on "P" to see all the custom-developed indicators starting with a "P".
Left-click on the PPCI hyperlink. The source code for PPCI appears in the middle of the screen. Left-click inside this window, then press Ctrl-A to select all of the text, then Ctrl-C to copy it.

2) Return to MT4, and press F4 to load the MetaEditor, a tool which allows to create and compile your own indicators, scripts and experts.

3) In MetaEditor, press Ctrl-N to create a new indicator using the Expert Advisor Wizard.
Select the "Custom Indicator" radio button, and click Next.
Type in the name (e.g. PCCI) that you want to use to reference your indicator in MT4, ignore the other fields, and click Next.
On the final dialog window, ignore all fields, and click Finish.

4) Now left-click in the body of the screen, press Ctrl-A to select all the text, and then press Ctrl-V to paste the text you copied back in step 1, completely overwriting the previous text.

5) Then press F5 to save and compile your indicator.

Hopefully, the message "0 error(s), 0 warning(s)" will appear, indicating a "clean compile", i.e. that the programmer wrote the source code correctly, without syntax errors. Press Esc to close the dialog box.

Presto! If you now return to MT4, the new custom indicator should automatically appear both in the Navigator, and also under the menu option "Insert > Indicators > Custom" if you prefer to add it to your chart in this manner.

You can also add scripts and experts in the same way.
In step (1), select the "MQ4 Scripts" or "MQ4 Experts" hyperlink in the left menu.
In step (3), select the appropriate radio button.

Note that these objects are stored in the following folders:
Experts: c:\program files\<mt4 broker name>\experts
Scripts: c:\program files\<mt4 broker name>\experts\scripts
Custom indicators: c:\program files\<mt4 broker name>\experts\indicators
Include (program code, e.g. .MQH) files: c:\program files\<mt4 broker name>\experts\include
Templates: c:\program files\<mt4 broker name>\templates
Data files: c:\program files\<mt4 broker name>\experts\files

NOTE: As an alternative to the above, if you simply copy the .MQ4 file into the relevant folder, and then (exit and) re-start MT4, the expert, script or indicator will automatically be recompiled, and appear in the Navigator.

If you want to delete an expert, script or indicator (CAREFUL!), use Windows Explorer to go to the appropriate folder, and delete the relevant file with the EX4 extension. For example, if you decide that you no longer want to use PCCI, delete file PCCI.EX4
That will effectively remove PCCI from the custom indicators list in MT4

The file PCCI.MQ4 contains the source code for PCCI (which you copied from the web resource), the PCCI.EX4 file is the executable code that was created when you did your compile back in step (5). If you want to re-instate the indicator, all you need to do is reload the source into MetaEditor (press Ctrl-O and open the relevant file), and then press F5 to compile it, which re-creates the executable file used by MT4.



[mtvortex]

CLOSE ORDER

Nak tau mcm mana nak close open order dlm MT4?
bukan close yg biasa. close sebahagian position anda. amat berguna jika market tidak seperti yg anda harapkan..(kureng power untuk naik atau turun) dan salah satu teknik MM yg baik..

Katakan kita ada open position dengan lot size 4 lot standard (bukan 4 order yg berbeza, 1 order standard dengan size position 400 000)
Nak close setengah dulu dan biarkan setengah lagi run.

Pergi ke Terminal Windows tempat MT4 broker anda dsplay open order dan pending order tu. Pastu double click open position yg anda nak close sebahagian. Then akan keluar pop-up windows untuk order tersebut. Masukkan nilai 2 (sebab ikut contoh atas tadi kita nak close setengah daripada position kita)dlm volume column, pastu tekan close (butang kaler kuning).

Order asal kita masih running tapi dengan saiz yg lebih kecik..



[darwisy]

MORE USEFUL TIP FOR MT4 USER..CONTINUE..

List of hotkeys

There are many other useful hotkeys. Here is a comprehensive list:

Left arrow — scroll chart to the left;
Right arrow — scroll chart to the right;
Up arrow — quickly scroll chart to the left or (if the scale is defined), scroll chart upwards;
Down arrow — quickly scroll chart to the right or (if the scale is defined), scroll chart downwards;

Numpad 5 — restores chart vertical scale to its original default. If the scale was defined, this returns the chart back to its visible range;

Page Up — scroll a whole screen to the left;
Page Down — scroll a whole screen to the left;
Home — move the chart to the start point (first bar);
End — move the chart to the end point (last, i.e. most current) bar;

"–" — zoom out (there are 6 levels of zoom available);
"+" — zoom in;

Delete — delete all selected objects;
Backspace — delete most recently added objects, on a last-added-first-removed basis;

Enter — open/close the fast navigation window;
Esc — close any dialog window;

F1 — open the on line help "Userguide";
F2 — open the "History Center" window;
F3 — open the "Global Variables" window;
F4 — open MetaEditor;
F5 — switch to the next profile;
F6 — call the "Tester" dialog window for testing the expert attached to the chart window;
F7 — call the properties dialog window of the expert attached to their chart window, in order to change its settings;
F8 — call the chart setup dialog window, allowing basic chart parameters, colors, etc to be changed;
F9 — call the "New Order" window, allowing the entry of market, limit, stop orders;
F10 — open the "Popup prices" window;
F11 — enable/disable full screen mode;
F12 — scroll the chart one bar to the left;

Shift+F12 — scroll the chart one bar to the right;
Shift+F5 — switch to the previous profile;

Alt+1 — display the chart as OHLC bars;
Alt+2 — display the chart as OHLC candlesticks;
Alt+3 — display the chart as a line (closing prices only);

Alt+A — copy all test/optimization results onto the clipboard;
Alt+W — call the chart management window;
Alt+F4 — exit the program;

Ctrl+A — arrange all indicator window heights by default;
Ctrl+B — call the "Objects List" dialog window;
Ctrl+C or Ctrl+Insert — copy to the clipboard;
Ctrl+D — open/close the "Data Window";
Ctrl+E — enable/disable the attached expert advisor;
Ctrl+F — switch to "Crosshair" mode;
Ctrl+G — show/hide the vertical/horizontal grid;
Ctrl+H — show/hide the OHLC line;
Ctrl+I — call the "Indicators List" dialog window;
Ctrl+L — show/hide volume data on the main chart;
Ctrl+M — open/close the "Market Watch" window;
Ctrl+N — open/close the "Navigator" window;
Ctrl+O — open the "Setup" window;
Ctrl+P — print the chart;
Ctrl+R — open/close the "Tester" window;
Ctrl+S — save the chart prices (OHLCV) in a file having extensions: "CSV", "PRN" or "HTM";
Ctrl+T — open/close the "Terminal" window;
Ctrl+W or Ctrl+F4 — close the chart window that's currently in focus;
Ctrl+Y— show/hide date (period) separators;
Ctrl+Z or Alt+Backspace — undo object deletions in the reverse order they occurred;

Ctrl+F6 — switch to the next chart window;
Ctrl+F9 — open the "Terminal — Trade" window and switch the focus into it, allowing trading operations to be entered via the keyboard.


Attaching indicators to indicators outside of the main price chart
You can attach moving averages and other indicators to indicators on other than the main chart. For example, if you want to use a moving average to smooth RSI, do the following:
1) Create a lower window with RSI in the normal manner.
2) Open the navigator window (press Ctrl-N).
3) Click on the "Indicators" heading in the Navigator window, if necessary, to expand it.
4) Move the mouse to the "Moving Average" item, then (holding down the left button), drag it (a rectangle appears under the arrow cursor) into the RSI window.
5) In the ensuing dialog box, got to the "Apply to" drop down, and set this to "First indicator's data". This will cause the MA to be attached to the first indicator in this window, i.e. the RSI.
6) Adjust other parameters as desired, and press Enter.

NOTE:
-- To create an indicator in a separate window, right-click on its name in the Navigator, and select "Attach to a chart".
-- To create an indicator in the same window as another, drag it's name into the relevant window.


Adding custom-defined indicators to MT4
One of the most powerful MT4 features is that it has a comprehensive but friendly programming language that allows custom-defined indicators, scripts and expert advisors to be written. Here's how to import an already written indicator into MT4's charting facility:

1) Go to a web resource that has the source code for the indicator. A good one is http://www.xeatrade.com/trading/11.html
Note the "# A B C D E F G H I J K L M N O P Q R S T U V W X Y Z" index.
So if you want to add (for example) the PPCI indicator to your charts, click on "P" to see all the custom-developed indicators starting with a "P".
Left-click on the PPCI hyperlink. The source code for PPCI appears in the middle of the screen. Left-click inside this window, then press Ctrl-A to select all of the text, then Ctrl-C to copy it.

2) Return to MT4, and press F4 to load the MetaEditor, a tool which allows to create and compile your own indicators, scripts and experts.

3) In MetaEditor, press Ctrl-N to create a new indicator using the Expert Advisor Wizard.
Select the "Custom Indicator" radio button, and click Next.
Type in the name (e.g. PCCI) that you want to use to reference your indicator in MT4, ignore the other fields, and click Next.
On the final dialog window, ignore all fields, and click Finish.

4) Now left-click in the body of the screen, press Ctrl-A to select all the text, and then press Ctrl-V to paste the text you copied back in step 1, completely overwriting the previous text.

5) Then press F5 to save and compile your indicator.

Hopefully, the message "0 error(s), 0 warning(s)" will appear, indicating a "clean compile", i.e. that the programmer wrote the source code correctly, without syntax errors. Press Esc to close the dialog box.

Presto! If you now return to MT4, the new custom indicator should automatically appear both in the Navigator, and also under the menu option "Insert > Indicators > Custom" if you prefer to add it to your chart in this manner.

You can also add scripts and experts in the same way.
In step (1), select the "MQ4 Scripts" or "MQ4 Experts" hyperlink in the left menu.
In step (3), select the appropriate radio button.

Note that these objects are stored in the following folders:
Experts: c:\program files\<mt4 broker name>\experts
Scripts: c:\program files\<mt4 broker name>\experts\scripts
Custom indicators: c:\program files\<mt4 broker name>\experts\indicators
Include (program code, e.g. .MQH) files: c:\program files\<mt4 broker name>\experts\include
Templates: c:\program files\<mt4 broker name>\templates
Data files: c:\program files\<mt4 broker name>\experts\files

NOTE: As an alternative to the above, if you simply copy the .MQ4 file into the relevant folder, and then (exit and) re-start MT4, the expert, script or indicator will automatically be recompiled, and appear in the Navigator.

If you want to delete an expert, script or indicator (CAREFUL!), use Windows Explorer to go to the appropriate folder, and delete the relevant file with the EX4 extension. For example, if you decide that you no longer want to use PCCI, delete file PCCI.EX4
That will effectively remove PCCI from the custom indicators list in MT4

The file PCCI.MQ4 contains the source code for PCCI (which you copied from the web resource), the PCCI.EX4 file is the executable code that was created when you did your compile back in step (5). If you want to re-instate the indicator, all you need to do is reload the source into MetaEditor (press Ctrl-O and open the relevant file), and then press F5 to compile it, which re-creates the executable file used by MT4.

Thanks very useful.



[mtvortex]

Thanks very useful.

untuk kebaikan bersama..



[mtvortex]

Kalau ada sesiapa yg kurang faham penerangan dlm bhs Inggeris untuk tips-tips sebelum ni sila tanya dan quotekan parameter yg anda nak tanya sahaja. Pls, jgn quote semua..



[mtvortex]

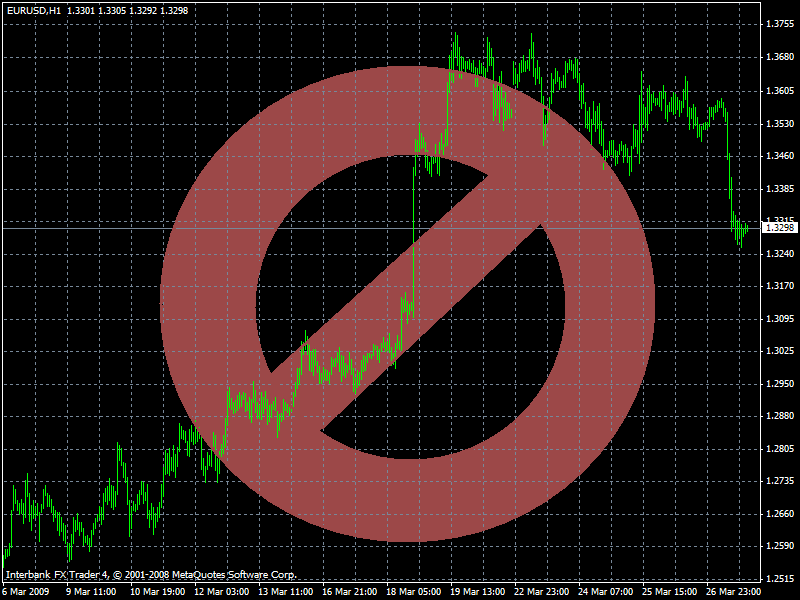

Bosan dengan color chart default MT4 anda? Bosan dengan kaler hijau terang berbackground-kan kaler hitam? Petak-petak grid yg menyakitkan mata setiap kali buka chart baru..

Nak tau mcmmana nak hilangkan terus pemandangan yang tak menyenangkan tu, kat sini saya nak share tips-nya. Lain kali kalau buka NEW CHART WINDOWS, benda-benda yg membosankan anda ni takkan ada lagi.

1. Mula-mula design satu template yg anda rasa anda akan guna sebagai default template MT4 anda.
2. Dah puas hati dengan hasil karya seni anda, save template tu dengan nama default(tpl).
3. Nah anda sudah bisa punya template default MT4 mengikut citarasa anda.

Selamat mencuba.



[yzakjule]

salam...
saya ni bru je main forex ni
nk tanya..boleh x setkn sl dan tp dgn 1 click saje?



[naffri]

Salam,
Saya ni baru belajar forex.Kat sini banyak info...happy nye.
Terima kasih pada semua

naffri



[zem7478]

thank s...jasa mu di kenang
